Tooling Identification Engraving Substrate
Color Structure:
Smooth matte rust-orange face / Continuous white core and backSheet Structure:
Two-ply front-engraving substrate with a micro-thin colored face layerBase Material:
Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary ordersSurface Finish:
Smooth matte, low-reflection rust orangeEngraved Result:
Shallow recessed white text, numbers, symbols and line graphicsAvailable Thicknesses:
0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order reviewSheet Size:
600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes availableProcessing Compatibility:
CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to orderApplications and Options:
Mold identification, assembly jigs, inspection fixtures, tool cabinets and workshop asset labels; adhesive backing or project-specific performance grades available subject to review
Tooling Identification Engraving Substrate LYS-7003 has a smooth matte rust-orange face over one continuous white core. Shallow front engraving removes the thin colored cap and reveals permanent recessed white words, numbers and line graphics without printed ink, vinyl lettering or paint fill. The acrylic-base version is supplied for CO2 laser work, while an ABS-base version is supplied separately for CNC and rotary production. Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm, with standard 600 × 1200 mm sheets and custom cutting. Typical B2B uses include mold and cavity plates, assembly-jig identification, inspection fixtures, tool cabinets, storage bays and repeat OEM workshop asset labels. The rust-orange color is a product attribute rather than an automatic safety or compliance claim.
Modell:LYS-7003
Anfrage absenden
Produktbeschreibung
LYSHIRE TOOLING IDENTIFICATION SERIES | LYS-7003
Tooling Identification Engraving Substrate

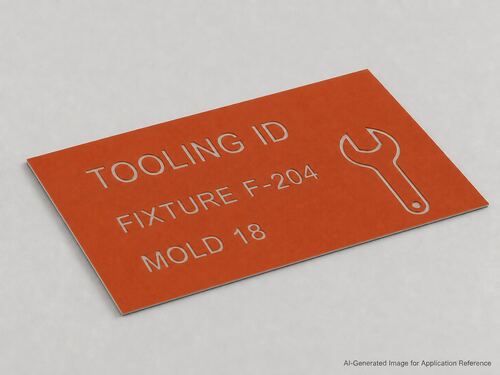

Tooling Identification Engraving Substrate LYS-7003 combines a smooth matte rust-orange face with one continuous white core in a two-ply front-engraving material. A shallow pass removes the thin colored cap and exposes permanent recessed white words, numbers and line graphics. The contrast comes from the sheet structure rather than printed ink, applied vinyl, raised lettering or secondary paint fill.
Color StructureRust Orange / White Core
Engraved ResultRecessed White Reveal
Order RoutingLaser Acrylic / CNC ABS
Two-Ply Identification Material
High-Visibility Color for Organized Tooling Information
Matte Rust-Orange Surface
The face is a solid warm rust-orange with a smooth low-reflection appearance. It is not metallic, mirror finished, wood grain, glittered or coarsely textured.
White Information Is Engraved In
Correct shallow engraving removes the thin rust-orange cap and reveals the continuous white core. The identification remains recessed and cannot peel away like an applied label.
Repeatable Industrial Layouts
The thin face supports tool numbers, fixture codes, mold references, bay locations and simple line symbols when the process-specific base and engraving depth are matched to the job.
An Industrial Identification Route, Not a Safety-Color Claim
LYS-7003 is positioned for tooling, fixture and workshop-asset identification. The rust-orange color is a product attribute and is not presented as automatic compliance with a warning, hazard or regulatory color system. It is separate from LYSHIRE matte orange safety-warning material and terracotta or gloss orange-brown pages.
Technical Data
LYS-7003 Product Parameters
| Color Structure | Smooth matte rust-orange face / Continuous white core and back |
|---|---|
| Sheet Structure | Two-ply front-engraving substrate with a micro-thin colored face layer |
| Base Material | Acrylic base for CO2 Laser orders; ABS base for CNC / Rotary orders |
| Surface Finish | Smooth matte, low-reflection rust orange |
| Engraved Result | Shallow recessed white text, numbers, symbols and line graphics |
| Available Thicknesses | 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm; configuration subject to base material and order review |
| Sheet Size | 600 × 1200 mm standard; 305 × 610 mm, 610 × 1220 mm and custom-cut sizes available |
| Processing Compatibility | CO2 laser engraving and cutting, or CNC / rotary engraving, routing and drilling, configured according to order |
| Applications and Options | Mold identification, assembly jigs, inspection fixtures, tool cabinets and workshop asset labels; adhesive backing or project-specific performance grades available subject to review |
Processing
Separate Laser and CNC / Rotary Configurations

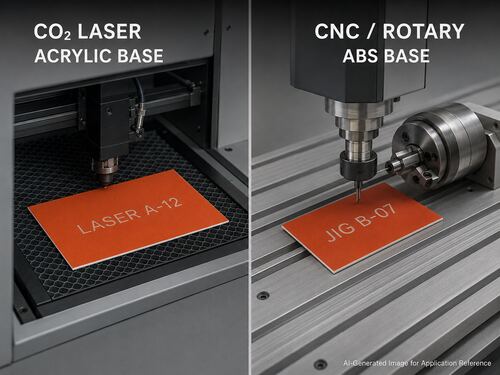

LYS-7003 can be supplied with an acrylic base for CO2 laser engraving and cutting or with an ABS base for CNC / rotary engraving, routing and drilling. The rust-orange-and-white appearance remains coordinated, but the two process routes are separate order configurations rather than one universal sheet.
- Specify acrylic base for CO2 laser engraving and vector cutting
- Specify ABS base for CNC or rotary engraving and mechanical fabrication
- Test power, speed, tool geometry and engraving depth before batch production
Confirm the Base Material before Production
Do not assume the ABS version is the preferred CO2-laser sheet or that the acrylic version automatically replaces a mechanical-engraving order. Send the machine type, processing method, thickness, sheet size and finished application so the correct configuration can be quoted and sampled.
B2B Applications
Tooling, Fixture and Workshop Asset Identification

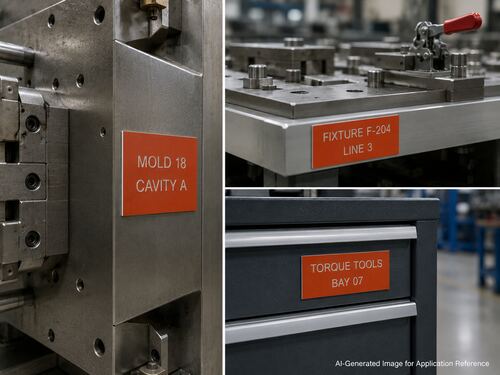

The matte rust-orange face and recessed white information suit fabricators producing coordinated identification plates for manufacturing environments. Typical uses include:
- Injection mold, die and cavity identification plates
- Assembly jig and production-fixture codes
- Inspection fixture and gauge identification
- Tool cabinet, drawer, rack and bay-location plates
- OEM workshop asset labels with repeat serial layouts
Identification Material, Not Automatic Performance Certification
The application image demonstrates possible use of the engraving substrate. The fabricator and end user remain responsible for confirming the mounting method, cleaning exposure, abrasion, temperature, UV conditions, required wording and any applicable traceability or safety procedure. State these conditions before the material grade is selected.
Wholesale Supply
Full Sheets, Custom Cutting and B2B Samples
LYSHIRE supplies tooling-identification engraving substrate to material distributors, industrial sign manufacturers, mold and tooling service companies, engraving shops and OEM equipment builders. Mixed products can be arranged within the standard 500-sheet MOQ, subject to material, thickness and packing requirements. Qualified B2B buyers can request samples to confirm the matte surface, white reveal and selected processing route before bulk purchasing.
For an accurate quotation, provide the sheet size, thickness, quantity, processing method, adhesive requirement, operating environment and destination market.
Buyer Questions
Frequently Asked Questions
What color appears after engraving LYS-7003?
Engraving removes the thin matte rust-orange face layer and reveals the continuous white core as recessed text, numbers, symbols or line graphics.
Is the white information printed or paint filled?
No. The white is the core material below the colored face. Correct engraving depth exposes it directly without printed ink, vinyl lettering or secondary paint filling.
Can LYS-7003 be ordered for both CO2 laser and CNC / rotary processing?
Yes, as separate process-specific configurations. CO2-laser orders use an acrylic base, while CNC / rotary orders use an ABS base.
Which thicknesses and sheet sizes are available?
Regular thicknesses include 0.1, 0.3, 0.5, 0.8, 1.3, 1.5 and 3.0 mm. Standard size is 600 × 1200 mm, with 305 × 610 mm, 610 × 1220 mm and custom cutting available subject to order review.
Does the rust-orange color make a finished plate safety compliant?
No. The color and application visuals do not certify a finished warning or safety sign. The fabricator and end user must verify required colors, wording, symbols, material grade and destination-market rules for the actual project.
